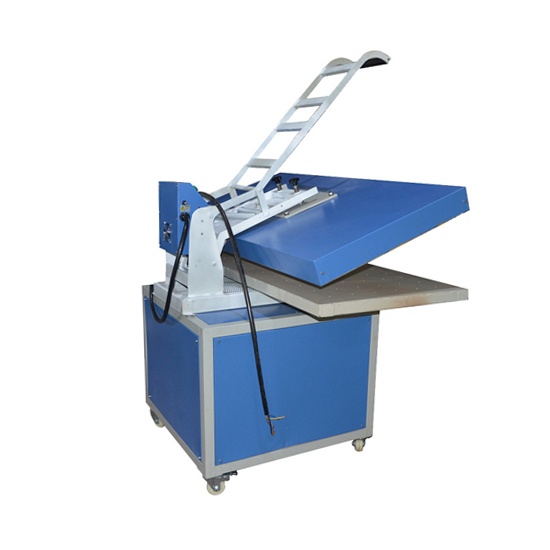

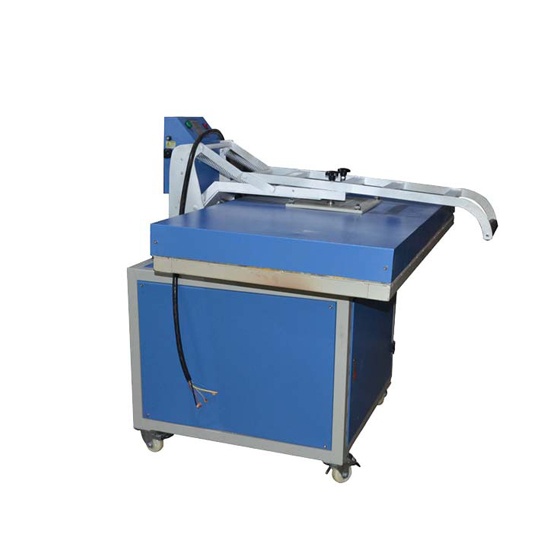

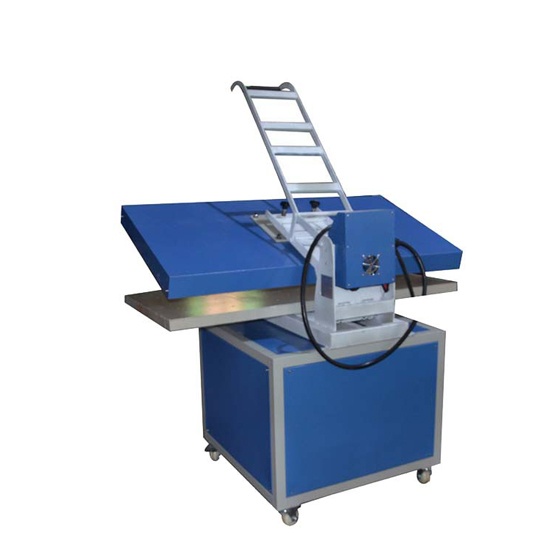

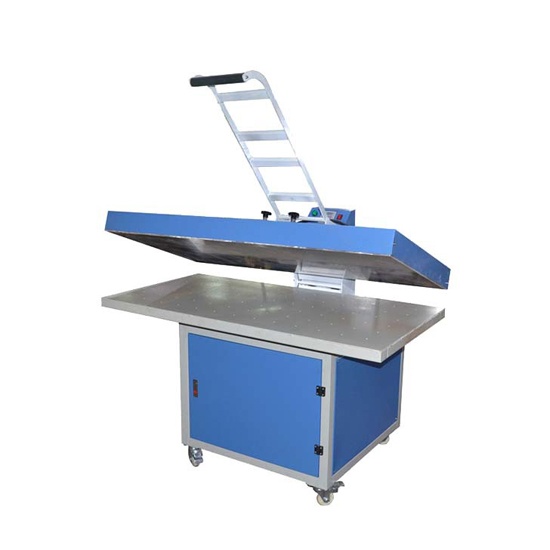

Large Format  Manual Heat Transfer Press

32” x  39” large platen size heat transfer press is designed for imprinting a wide range of materials.   Transfer onto an array of flat surface materials such as fabric, sportswear, panels, floor mats, carpets, banners, metal, ceramic, wood , glass and more!
Features:

Digital Temperature Control:



▪  Allows you to preset and adjust temperature providing even heat across the entire surface.  Features an elevated aluminum upper platen element which is non-stick and Teflon coated to prevent possible scorching of transfers and does not require separate silicone or Teflon sheets.



User Friendly Control Panel:



▪  Digital LED control panel allows for: setting of temperature and time.   Intelligent audible alarm sounds automatically when the transfer is complete. Adjust pressure by turning knob according to the thickness of material.



Wide Material Usage:



▪  Large format heat press designed for imprinting a wide range of materials.   Transfer onto an array of flat surface materials such as fabric, sportswear, panels, floor mats, carpets, banners, metal, ceramic, wood , glass, etc.



Heavy-Duty Steel Frame Structure:



▪  Made from rugged steel construction with locking caster wheels
Specifications:

Platen Size: 32” x 39” (800 x 1000mm)

Material: Fabric, sportswear, panels, floor mats, carpets, banners, metal, ceramic, wood , glass, etc.

Digital Controls: Yes

Temperature Adjustment: 0-750°F (0-399°C)

Pressure Adjustment:  Yes

Digital Timer: 0 – 999 seconds

Audible Alarm: Yes

Removeable Silicone and cotton pad: Yes

Housing: Steel

Caster Wheels with Lock: Yes

Operating Environment:  41-95°F (5-35°C)

Dimensions and Weights
Crate Dimensions (w x d x h)

59” x 36.6” x 61.  (1500 x 930 x 1550 mm)

Unit Weight:  1100 lbs (500 kg)

Electrical Rating

Power Supply:     AC 110V- 220V / 60Hz

Power Consumption:  <9 KW
